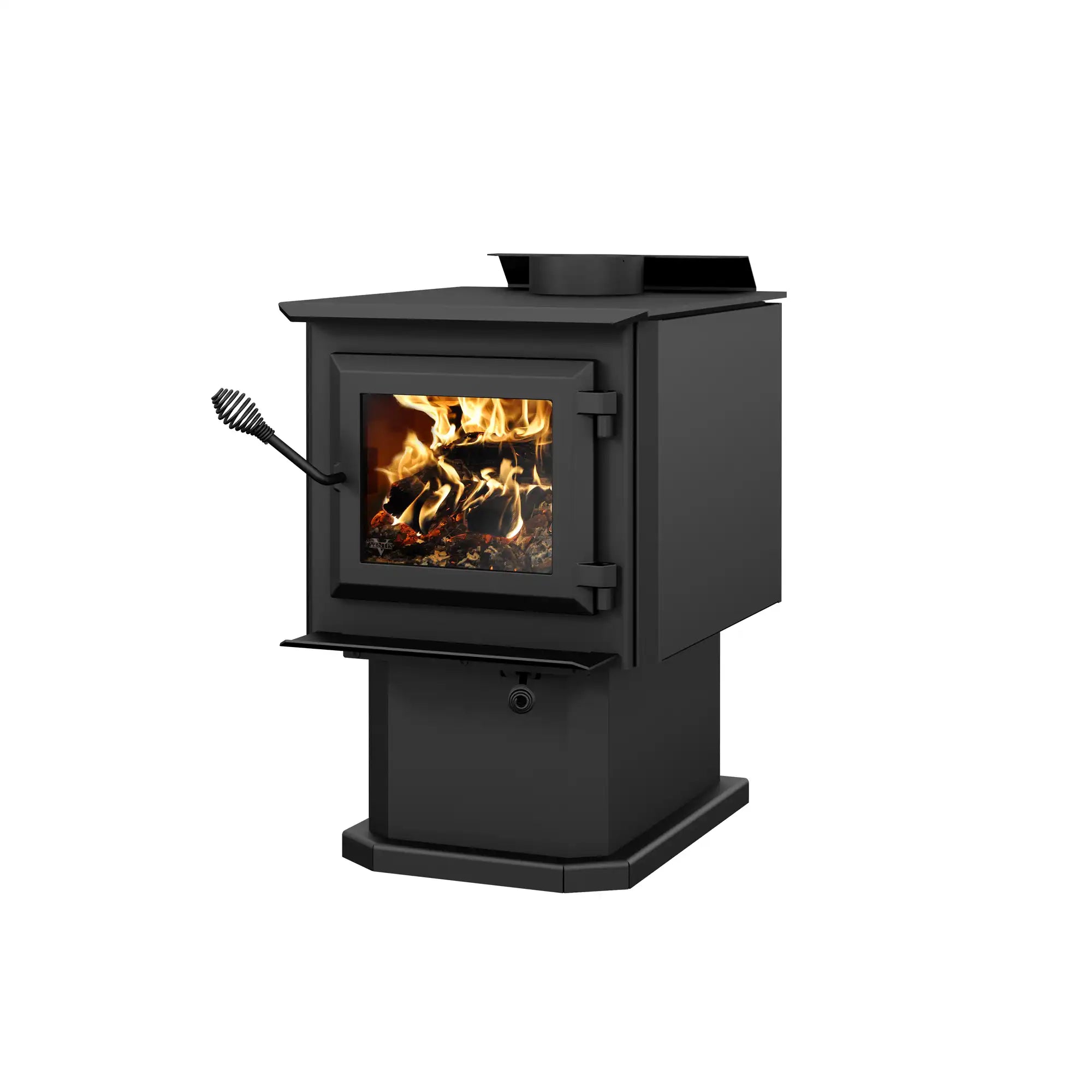

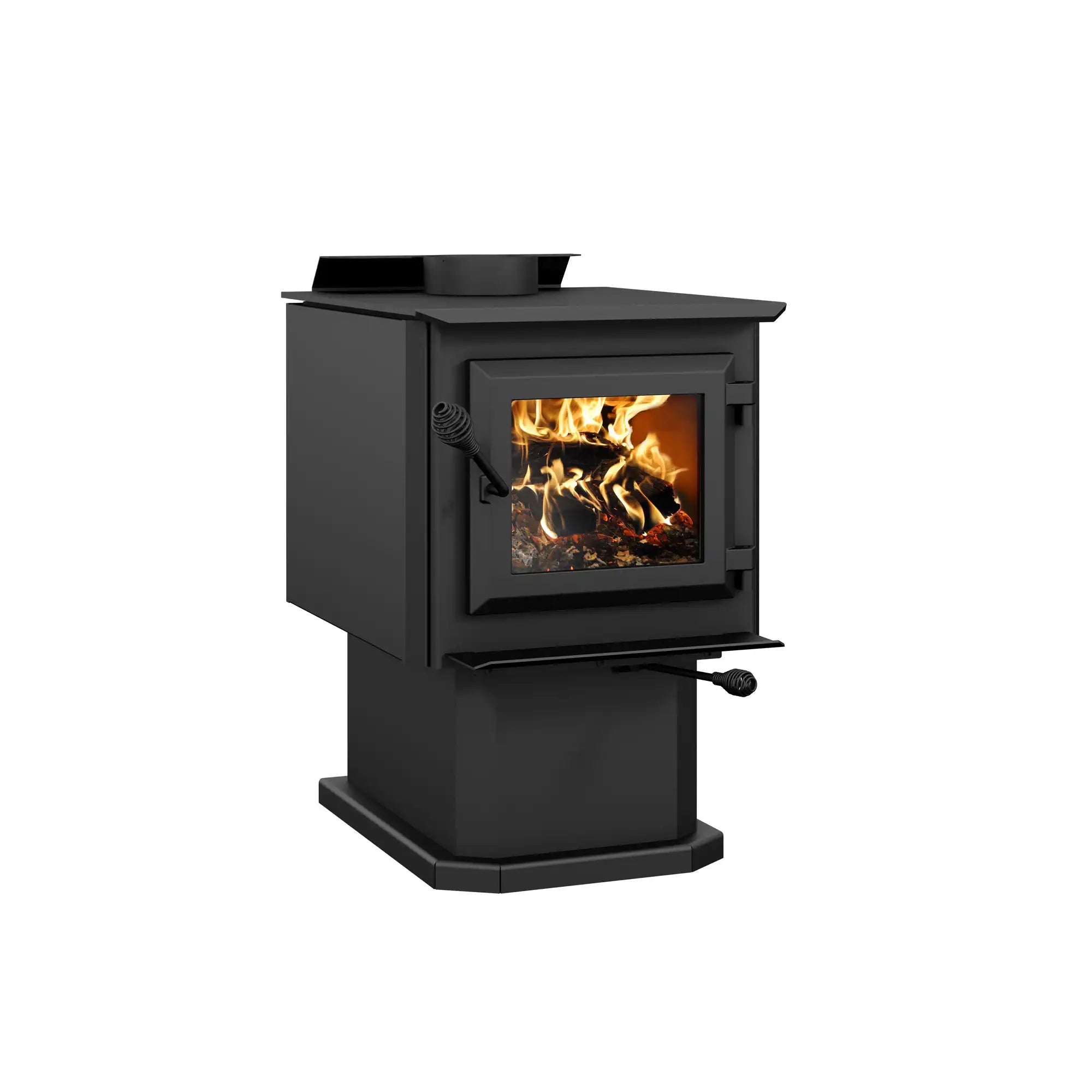

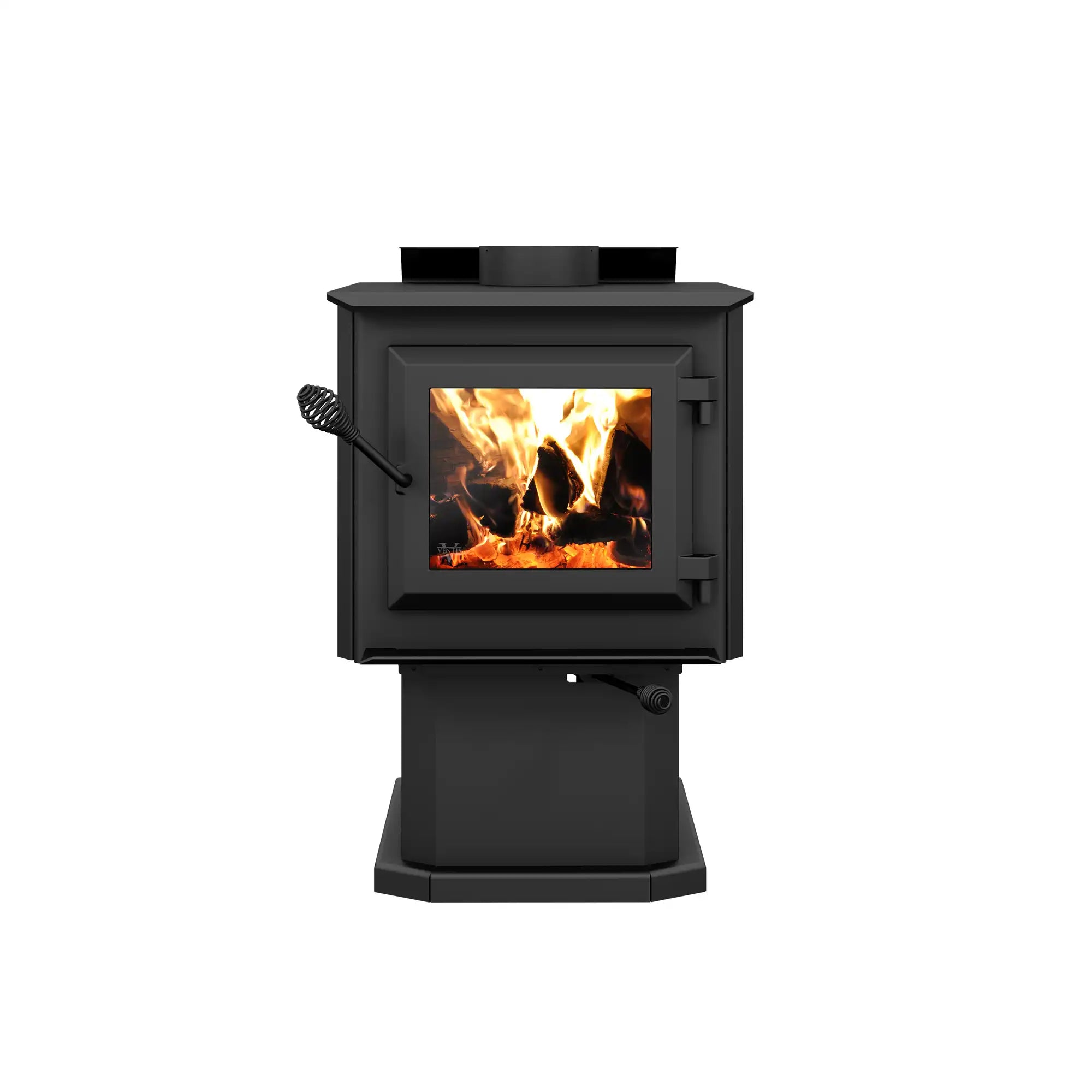

Ventis HES140
▪Small wood stove on pedestal
▪EPA certified
▪Non-catalytic combustion technology
▪Glass airwash system for a cleaner view of the flames
▪Cast iron door
▪Top heat deflector and side panels
▪Stainless steel heat shield added to the firestop
▪Proudly made in Canada
Appliance performance
| Fuel type | Dry cordwood (16" recommended) |
|---|---|
| Heating area (8)
|
250 - 1,200 ft² |
| Overall firebox volume | 1.8 ft³ |
| EPA loading volume | 1.55 ft³ |
| Maximum burn time (8)
|
5 h |
| Maximum heat output-dry cordwood (3)
|
45,000 BTU/h |
| Minimum overall heat output rate (3)
|
12,124 BTU/h (3.55 kW) |
| Maximum overall heat output rate (3)
|
26,700 BTU/h (7.83 kW) |
| Average overall efficiency-dry cordwood (HHV) (4)
|
74 % |
| Average overall efficiency-dry cordwood (LHV) (4)
|
79 % |
| Optimum efficiency (1)
|
80 % |
| Optimum heat transfer efficiency (7)
|
79 % |
| Average particulate emission rate (9)
|
1.8 g/h |
| Average CO (10)
|
74 g/h |
Clearances
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
| Canada | ||||
| Single wall pipe | Double wall pipe | |||
| Clearances - Base of the unit to ceiling** | 84" | 84" | ||
| Clearances - Corner | 11" | 6" | ||
| Clearances - Back wall | 14" | 6" | ||
| Clearances - Side wall | 12" | 12" | ||
|
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). **Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
||||
